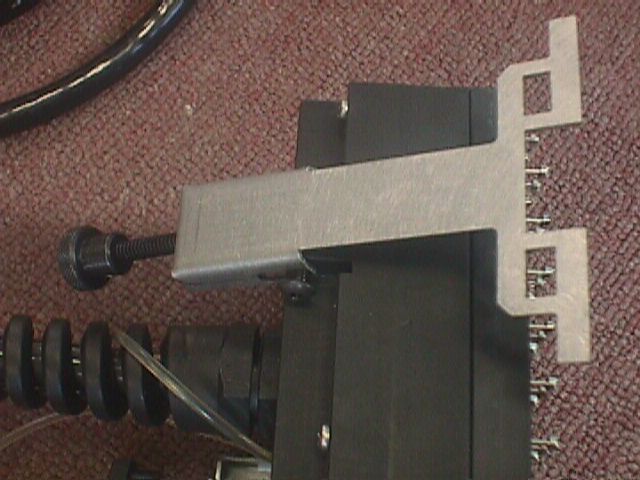

TP1103 Latch

TP1103 Probe

The TP 1103 Front Tap Shoe is designed for use with Reliable Special Stacking Blocks.



*Please note: due to the obsolescence of Cinch Jones connectors, all our Front Tap Shoes are now manufactured with male bail lock AMP connectors.

See details/descriptions at http://www.customassemblyinc.com/testequipment/


The TP 1103 consists of the following components:

  • Injection molded plastic contact pin housing (black)
  • 100 plated, field replaceable, precision-aligned Tip-Ring contact pins
  • 100 contact pin springs made of .010 MW, S&B
  • Equipped with two screw-down latching devices for precision fit
  • Cable strain relief complete with snap hook
  • A 15 foot, 50 pair, 28 AWG stranded (7/38) tinned wire cable; soldered terminations
  • Two 25 pair Female Cinch Jones or AMP Connectors.
  • Protective plate that fits over the precision-aligned test probes when not in use. The protective plate is tethered to the test cord to prevent its loss when not in use.
