1. Ordering for your specific Testing Equipment

ORDERING FOR YOUR SPECIFIC TESTING EQUIPMENT:

Note: the new, standard CAI Front Tap Shoes (FTS) are manufactured with male bail lock AMPs. If you have the older style FTS with female Cinch Jones connectors, you will need adapters accordingly...

ETAM Users:

Your tester requires the old style Front Tap Shoes (FTS) with female Cinch Jones connectors in order to plug in and test. This means, if you have the new style FTS with male AMPs, you will need to order the TP3350 Adapter (female Cinch Jones and female AMP).

<Note the ETAM's male Cinch Jones connectors require females for connectivity> <attaching TP3350.  <TP3350s on ETAM (ready to accept new, standard FTS with male bail lock AMPs)

<TP3350 adapter. Base (female Cinch Jones equivalent) inserts into the tester, and the top (a female AMP connector) will accept the male bail lock AMP from the new standard Front Tap Shoe.



ETAM II Users:

Your tester requires male AMP connectors to plug in your Front Tap Shoes. Our New Front Tap Shoes have male AMP connectors and will connect.

However, when using OLD style Front Tap Shoes (FTS) that have female Cinch Jones connectors, you will need to order the 50 pair TP3300 Adapter (male AMP’s to male CJ's). *Note: two of the TP3300 are stackable and will accommodate 100 pair needs.

 <ETAM II (has female AMPs)      <TP3300> <The base (male AMPs) of the TP3300 attaches easily onto the ETAM II.



AA Logic Users:

Your tester requires the old style Front Tap Shoes (FTS) with female Cinch Jones connectors in order to plug in and test. This means, if you have the new style FTS with male AMPs, you will need to order the TP3350 Adapter (female Cinch Jones and female AMP).

<Note the tester's male Cinch Jones connectors require females for connectivity>    <attaching TP3350 to tester.

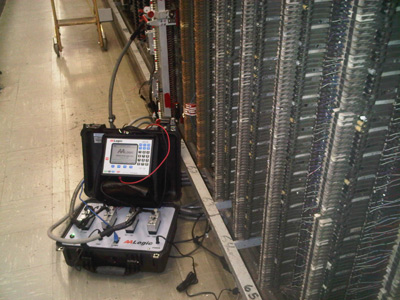

   <AA Logic

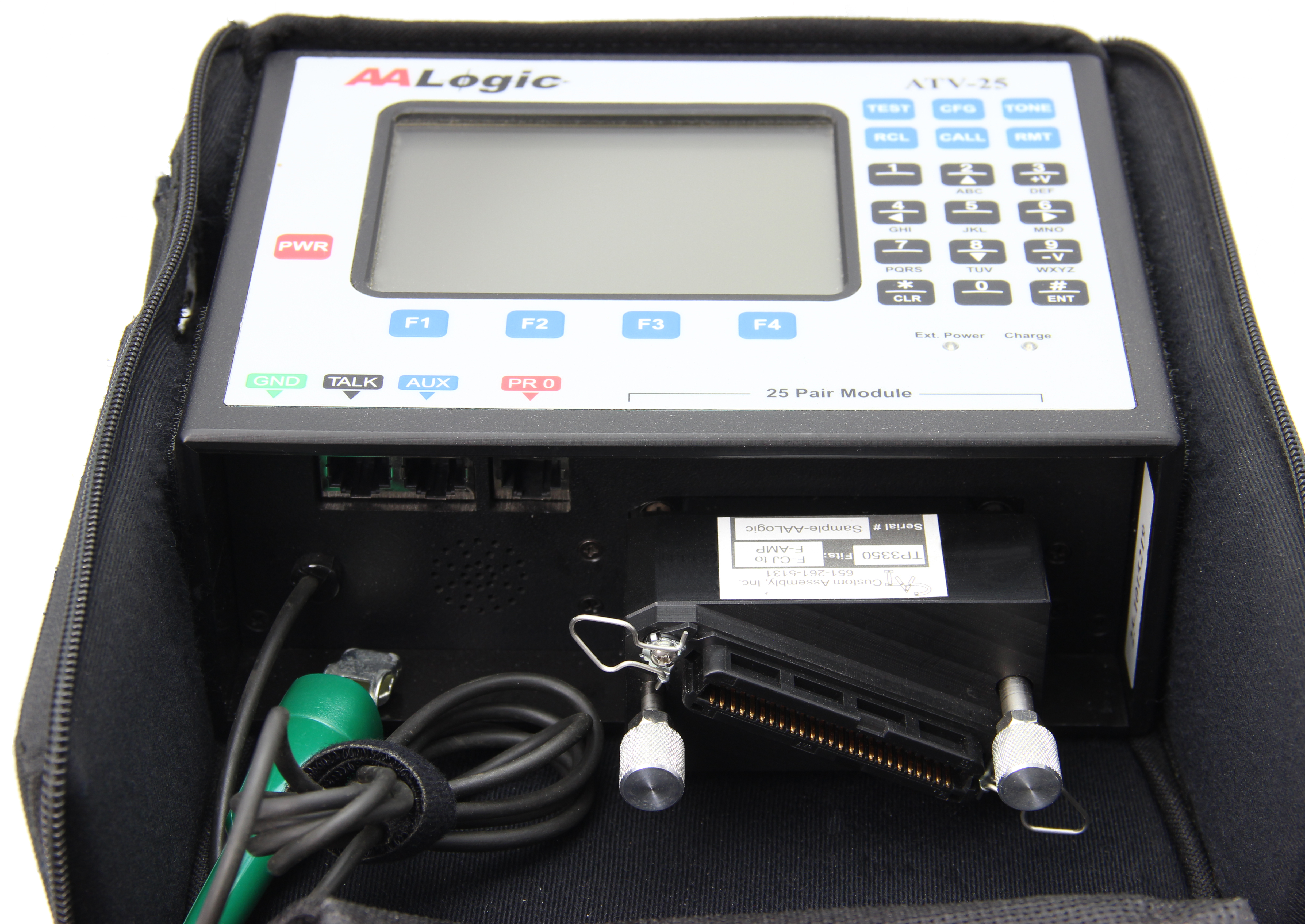

<TP3350 adapter. Base (female Cinch Jones equivalent) inserts into AA Logic and the top (a female AMP connector) will accept the male bail lock AMP from the new standard Front Tap Shoe.



 Test-All 25 Users:

Your equipment has male bail locks as connectors, thus when ordering Front Tap Shoes, you will need to request female AMP connectors:
