TP1001

The TP 1001 Front Tap Shoe is designed for use with the AT&T 303 and 302 type Central Office Main Frame Connectors. The Test Shoe can also be used on the following connectors.

     SEICOR (COOK/NTI): 303, 310, 353, 377, 378, 388 & 390

     Reliable 305, 325, 355, 710,and RG710

     AT&T (Weco) 303 and 302

*Please note: due to the obsolescence of Cinch Jones connectors, all our Front Tap Shoes are now manufactured with male bail lock AMP connectors.

See details/descriptions at http://www.customassemblyinc.com/testequipment/





TP 1001

TP 1001

Reliable 305

Reliable 305

Reliable 355

Reliable 710

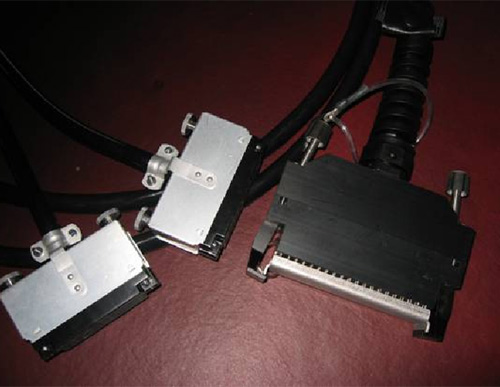

The TP 1001 consists of the following components:

  • Plastic contact pin housing (black)
  • 100 field replaceable, plated, spring loaded Tip Ring contact pins
  • Two down latching devices and a cable strain relief
  • A 15 foot, 50 pair, 28 AWG stranded (7/38) tinned wire cable; soldered terminations
  • Custom fitted pin protector
  • Two 25 pair Female Cinch Jones or AMP Connectors (per customer request)

The TP1001A has Amps on the one end instead of Cinch Jones.
