TP1120

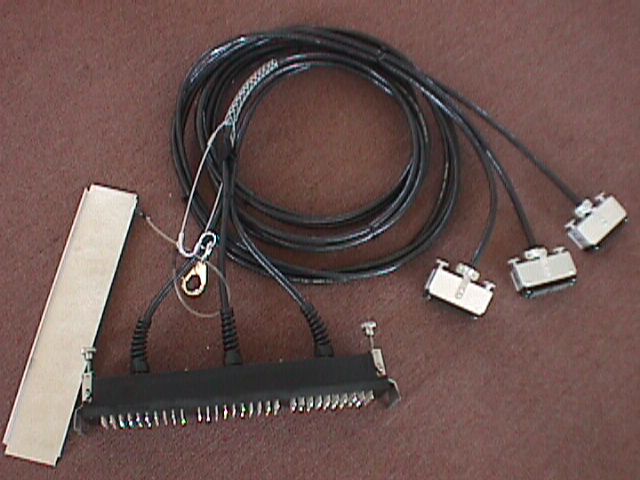

TP1120
TP1120 Bottom

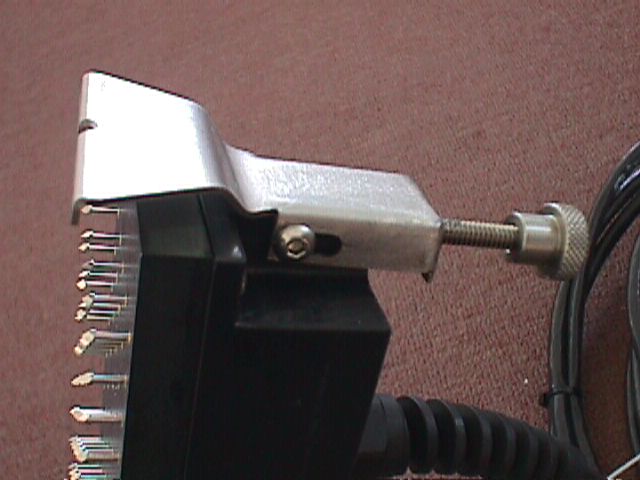

TP1120 Latch

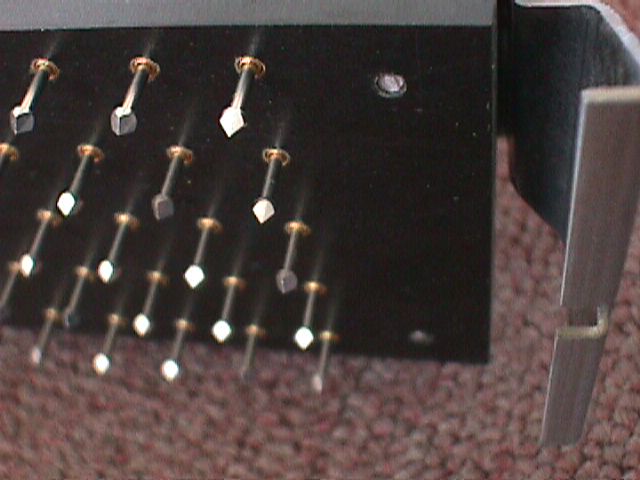

TP1120 Probes
The TP 1120 is a 75 pair Front Tap Shoe designed for use with Siecor type Split Blocks.
- 75 pair – Latches
*Please note: due to the obsolescence of Cinch Jones connectors, all our Front Tap Shoes are now manufactured with male bail lock AMP connectors.
See details/descriptions at http://www.customassemblyinc.com/testequipment/
The TP 1120 consists of the following components:
- Injection molded plastic contact pin housing (black)
- 150 plated, field replaceable, precision-aligned Tip-Ring contact pins
- 150 contact pin springs made of .010 MW, S&B
- Equipped with two screw-down latching devices for precision fit
- Cable strain relief complete with snap hook
- A 15 foot, 75 pair, 28 AWG stranded (7/38) tinned wire cable; soldered terminations
- Can be fit with three 25 pair Female Cinch Jones or AMP connectors.
- Protective plate that fits over the precision-aligned test probes when not in use. The protective plate is tethered to the test cord to prevent its loss when not in use.
